AUTOCLAVE AND STERILIZERS - (GES-AS)

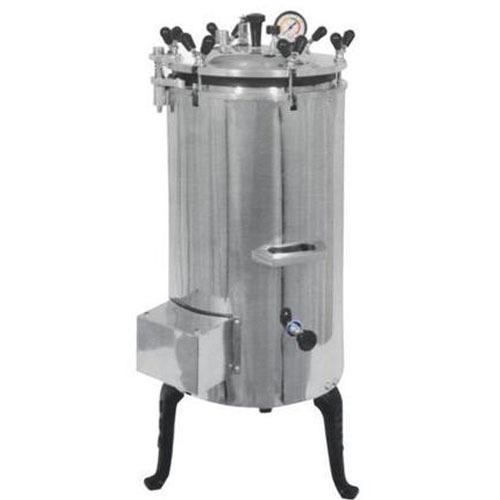

Vertical High pressure steam sterilizer Autoclave - (GES-AS 0001)
- Temperature Range : Ambient to 132 degree Celsius
- Pressure Range (psi) : 1.2 kg/cm2 at 121 degree Celsius
- Chamber Volume (Litre) : 50
- Insulation Wall : Double Wall, Single Wall
- Automation Grade : Manual, Semi Automatic
- Chamber Size: 350 X 630mm
- Capacity: 40 Liter
- Chamber Type: Round Vertical
- Temperature Controller: Digital PID Controller
- Temperature Range: Ambient to 132C
- Operating Pressure: 1.2 kg/cm2 at 121C
- Timer: 99 min. Digital Timer
- Pressure Gauge: Mechanical Type 0 to 3 kg/cm2
- Air Exhaust: Adjustable Handle Valve
- Safety Device: Over Heat Protector, Over Pressure Protector, Alarm
- Power: 3 kw
- Voltage: 220V AC, 60Hz

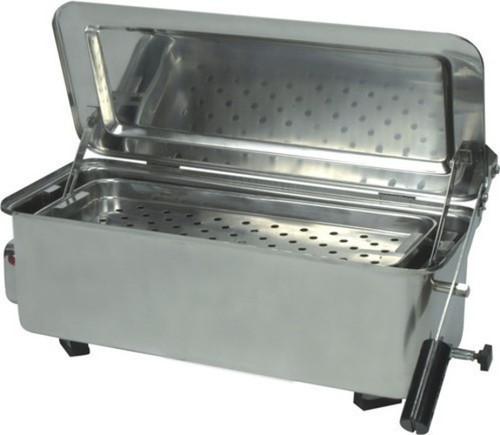

2. Sterilizer with thermostate - (GES-AS 0002)
- Made of stainless steel. Power : Single Phase, 220V, 55 Hz,
- Available with thermostat to control temprature of water from size 12" onwards.
- Tray lifiting arrangement to control temprature of water from size 12" onwards.
- Available with auto-cut off element for all sizes. Fitted with backalite/good quality plastic handle and four legs.
- Electrically fitted with 1KW-2KW single phase element of 220V/50 Hz as per sizes and three core wire.

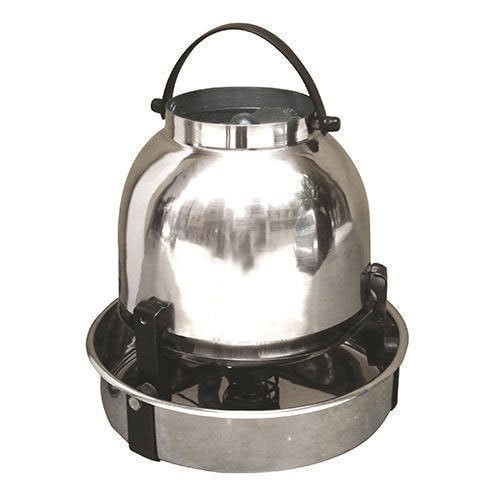

Aerosol Disinfectant - (GES-AS 0003)
- Powerful mechanism instantly convert liquid formalin into aerosol particles. Portable and easy to operate Low maintenance
- Maximum height : 390mm
- Atomizing capacity : 30-50ml/min
- capacity :1.5 liters & 5 Liters
Autoclave Pressure Cooker - (GES-AS 0004)
- Available in stainless steel and aluminium. Available in electric and non electric. Available with semi-automatic (timer based). Used for sterilization of surgical instruments and dressings.
- Good quality synthetic rubber gasket for longer and better performance and hygiene. Weight type safety valve and presssure regulating device for better saferty and functioning.?
- Pressure guage (0-30 ibs/in2) to indicate the safe, sterilization and danger zones. Highly strong and durable vacuum and steam relase valves.
- Handles and valve knobs made of very durable, heat resistant and fine quality bakelite. Heating element made of heavy copper pipe for longer life.
- Powder coated outer stand to provide better stability and attractive looks.

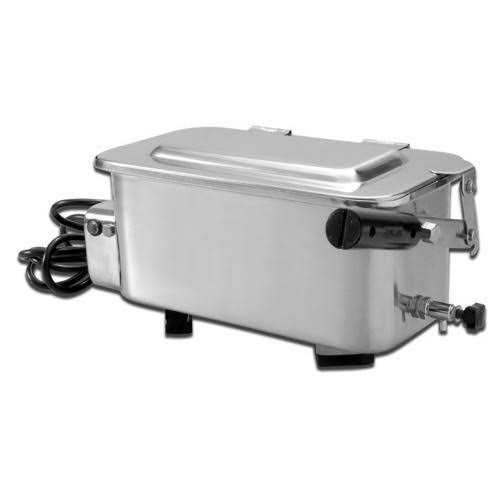

Autoclave Pressure Cooker - (GES-AS 0004)
- Electric Instrument Sterilizer & Boiler Stainless steel construction.
- A Fitted with thermostat & tray lifting
arrangement
Available Sizes :
8 x 5 x 5" Inches
10 x 5 x 5" Inches
12 x 6 x 6" Inches
14 x 6 x 6" Inches
18 x 8 x 8" Inches

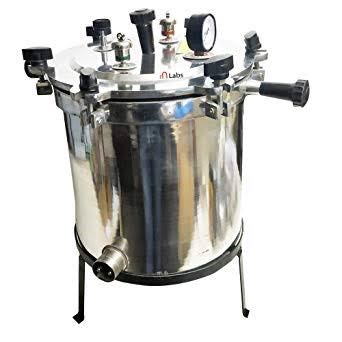

Sterilizer with six wing nut - (GES-AS 0006)
- Autoclave Aluminum (Sterilizer) Vertical Wing Nut Type Seamless.
- Size/Capacity : 21 ltr — 39 ltr. Seamless construction ensures bacteria free environment.
- The unit is made of Aluminium mirror finish. Equipped with Pressure Gauge, Safety Valve, Double Safety Valve, Steam Release Valve, Vacuum Release Valve, Rubber Gasket, Inner Container, Inner tripod stand and Mild Steel Stand for Autoclave.
- Sterilizing Temp : 120 to 131 degree celsius
- Sterilizing time : 25-30 minutes
- Heating Element : 2000 Watts, 220/240 Volts A/C.
