INFANT CARE EQUIPMENTS-(GES-ICE)

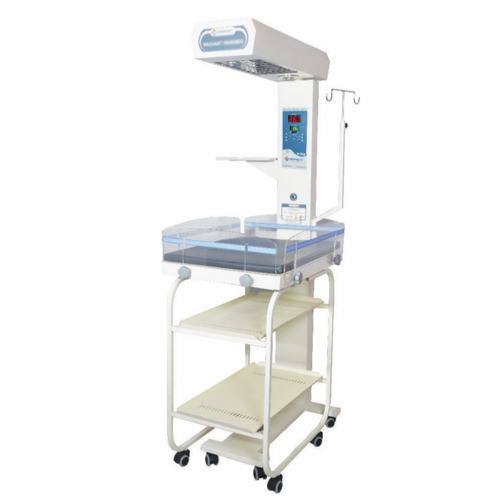

Infant Radiant Warmer with detachable baby cradle and drawer - (GES-ICE 0001)
Fixed height warmer with detachable baby cradle mounted on 4" ( 100mm) wheels, 2 with brake. Stainless steel baby tray with water proof, zipped cover mattress of density approx. 21-25 kg/m3 Continuous head up/ down facility X-Ray cassette holder Collapsible/lockable Side Supports made up of Unbreakable polycarbonate material Slots for sensor and ventilator tubing .. ., Side tray for placement of monitor Stainless steel infusion rod with facility to mount Syringe/infusion pump Lower shelf below baby tray to facilitate under surface phototherapy. Height : 74.5" (1890 mm), Width : 28.0" (710 mm), Length : 39.0" (990 mm) Bed to Floor Height : 37.5" (950 mm) Distance between baby bed and heater: 33" (840 mm) Mattress size: 30" (762 mm) x 20" (508 mm) Height of side panel above baby bed: 5. 75" ( 145 mm) Microprocessor based temperature controller with Pre-warm, Manual and Skin Servo modes LED Display of Skin Temp., Set Temp. (Resolution 0.1 °C) & Heater Power %. LCD to display modes of operation, Alarm messages, Skin Temperature in °F and Timer. Thermistor based sensor with Accuracy of+/- 0.2°C (Temp. Calibration not require). Modes of Operation: Skin Servo, Manual and Pre-Warm Keypad lock facility Skin mode: Temperature range: 34 to 38°C , Resolution : 0.1 °C Manual mode: Adjustable Heater Power 0 to 100% (with an increment of 5%), Time duration: 15mins Pre-warm mode: To pre-warm the cradle before baby is placed on the bed.(No alarm will be activated during Prewarm mode). Adjustable Heater Power 0 to 25% (with an increment of 5%), Time duration:30mins Overhead heater box: Swivelling, Consists of Ceramic heater (650 Watts) placed in parabolic reflector with a safety grill & Halogen observation light (12V /SOW) for observing the baby Operating Voltage: 220-240 VAC, 50Hz, Power: 800W (Max.) Alarm: Audio alarm with 10 minute mute facility & Visual alarms with message on LCD

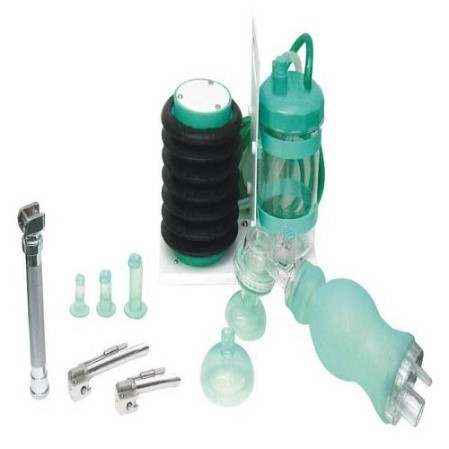

2. Infant Resuscitation Kit - (GES-ICE 0002)
Silicone Resuscitator Infant Airways Size : 00, 0, 1 No. Silicone mask Size : 0 & 1 No. Oxygen Tube Carry bag
3. Adult Resuscitation Kit - (GES-ICE 0003)
Silicone Resuscitator Adult Airways Size : 2, 3, 4 No. Silicone mask Size : 4 & 5 mask Oxygen Tube Carry bag

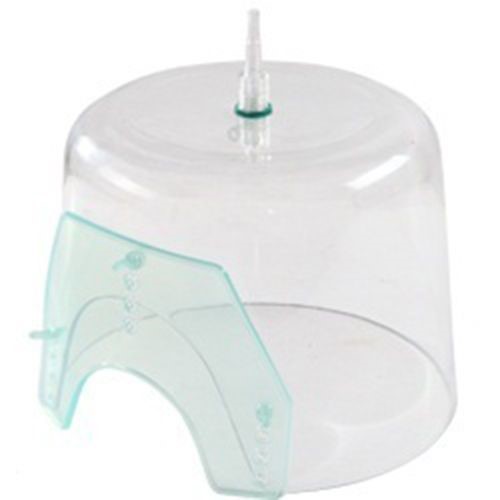

4. Oxygen Hoods - (GES-ICE 0004)
Overall Size: 255 mm x 220 mm x 200 mm. Neck Size: 145 mm x 125 mm. Size of Access Door : 100 mm diameter. Top land Area of the hole to insert feeding tubes : 140 mm x 140 mm sq.
4. Oxygen Hoods - (GES-ICE 0004)
Overall Size: 255 mm x 220 mm x 200 mm. Neck Size: 145 mm x 125 mm. Size of Access Door : 100 mm diameter. Top land Area of the hole to insert feeding tubes : 140 mm x 140 mm sq.
5. Infant Incubator Double Wall Canopy (GES-ICE 0005)
Acrylic Doubled Wall Canopy with six port holes. Front Loading. Four Inlets for administration of 02, IV lines or Ventilator tubing. Sliding Baby Tray with External jerk free gear based Head Up / Down facility. X-Ray cassette sliding facility. Stainless Steel rust free Heater, blower sub assembly with changeable micro Air filters. Provision of adequate Storage by 3 drawers and an open shelf. Humidity heater and Hygrometer. Pole for Syringe Pump / Infusion Pump & S.S. IV Stand. Microprocessor based temperature controller with Skin / Air / Manual mode
6. LED Phototherapy Stand - (GES-ICE 0006)
Heavy duty mobile stand phototherapy unit Fire retardant enclosure for light source Antistatic castors Head height adjustment approx. 0.95 to I.Sm Source cooling fan Blue LED 12 (3W each LED) High irradiance at Skin level up to 55 lw/cm2/nm at 35cm Wavelength - 450 to 465nm Dual digital cumulative hour timer for LED usage and patient exposure Power requirement - 230V / S0Hz Power consumption - 7 SW Lamp Life 40000hr

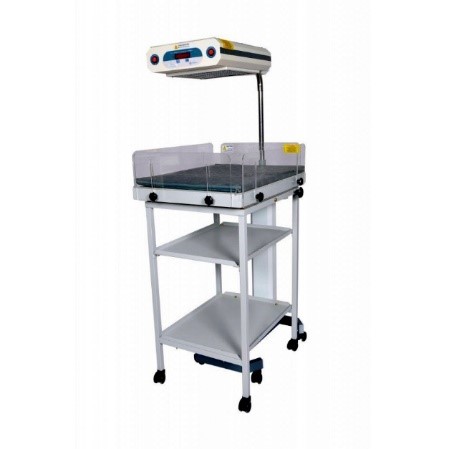

7. Phototherapy Stand with Trolley - (GES-ICE 0007)
Heavy duty mobile stand phototherapy unit Single head, surface size, approx. 0.75m x 0.33m Head height adjustment, approx. 0.95 to 1.5m Source cooling fan Mirror coated reflector 4 Special Blue Tubes - 2' approx. 20W 2 Day Light Tubes - 2' approx. 20W High Irradiance at Skin level up to 22µw/cm2/nm at 30cm Wavelength - 420 to 500nm, with highest intensity at 470 nm Power requirement - 230V / 50Hz Power consumption - 130W Mo bile basin et cot for neonates Cart on 4 swivel castors, approx. dia. 50 mm Baby Tray with mattress, along with head up/down facility and X-ray cassette holder Transparent acrylic, drop down and lockable side panels Two shelves below baby bed for under surface phototherapy and storage
