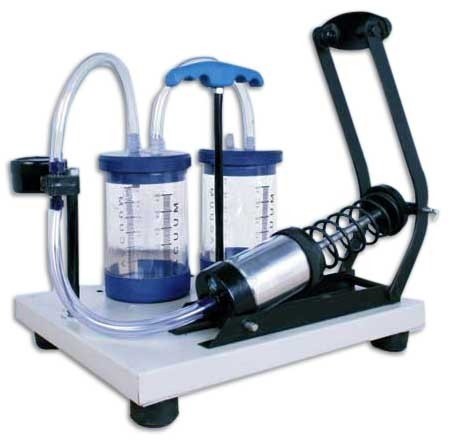

1. Suction Unit Manual Foot/ Pedal Operated - (GES-SM 0001)

Plastic moulded Piston pump Capacity: -600 mm Hg ± 10 , 200 ml / Push Stroke 2 Polycarbonate Jars of 1 litre Filter: Bacterial Filter Autoclavable / Reusable Silicon tubing of 8mm ID x 2 mtr Supplied with tool kit, Filter paper and Push in Nozzle

Responsive image

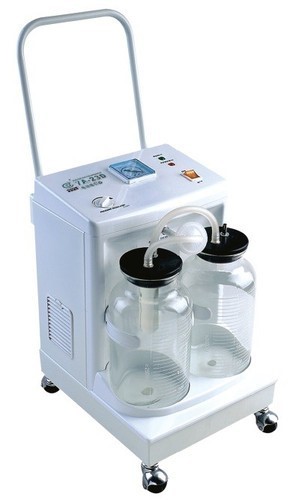

2. Suction Unit with Flow - (GES-SM 0002)

Housing : Plastic moulded on two wheels with foot switch & changeover lever Max. Vacuum / LPM : -600 mm Hg, 60 Ltrs / min Double Diaphragm pump 2 x 4 Ltrs. Polysulfone (PSU) Jars Filter: Bacterial Filter Autoclavable Reusable Silicon Tubing: 10mm ID x 2 mtr. Vacuum Gauge: 6.25 cm dia 0-760 mm Hg calibration. Power Supply : 220 V AC, 50 / 60 Hz, 180 Watt Noise Level: 55 dB A ± 3 Mechanical and Electrical sensor

Responsive image

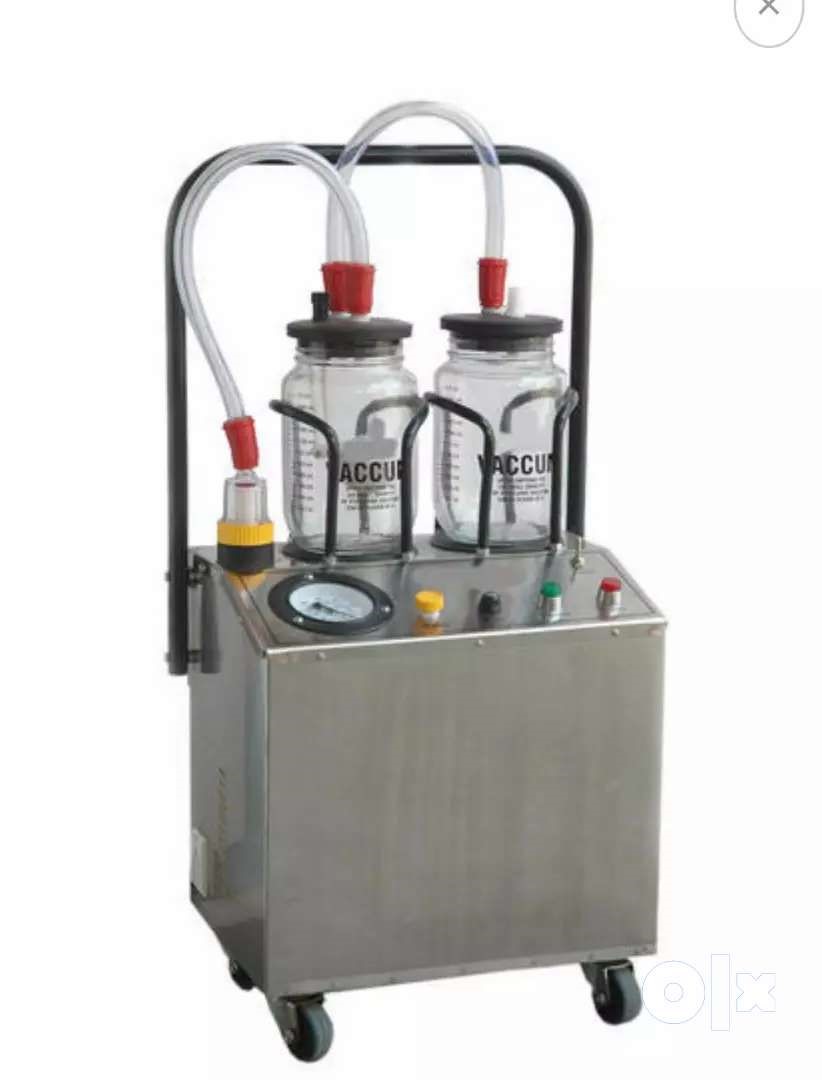

3. Suction Unit with High Flow - (GES-SM 0003)

Plastic moulded housing Double Diaphragm pump Max. Vacuum / LPM : -600 mm Hg, 60 Ltrs / min 2 x 2.5 Ltrs. Polycarbonate Jar Silicon tu bing : 10 mm ID x 2 m tr. Vacuum Gauge : 6.25 cm dia 0-760 mm Hg Ppwer supply : 220 V AC, 50 / 60 Hz, 180 Watt Bacterial Filter Autoclavable / Reusable Noise level : 55 dB A ± 3 Mounted on two wheels with foot switch & changeover lever

Responsive image
4. Suction Unit Stand Model - (GES-SM 0004)

ABS Plastic Moulded housing with foot switch on Trolley with four castors. Capacity: -575 mm Hg ± 10 , 45 Ltrs/ min Diaphragm Pump 2 x 2 Ltrs Polycarbonate Jar Bacterial Filter Au toclavable / Reusable Silicon tu bing : 10 mm ID x 2 m tr. Vacuum Gauge : 6.25 cm dia 0-760 mm Hg Ppwer supply : 220 V AC, 50 / 60 Hz, 90 Watt Noise level : 55 dB A ± 3 Mechanical and Electrical sensor

Responsive image

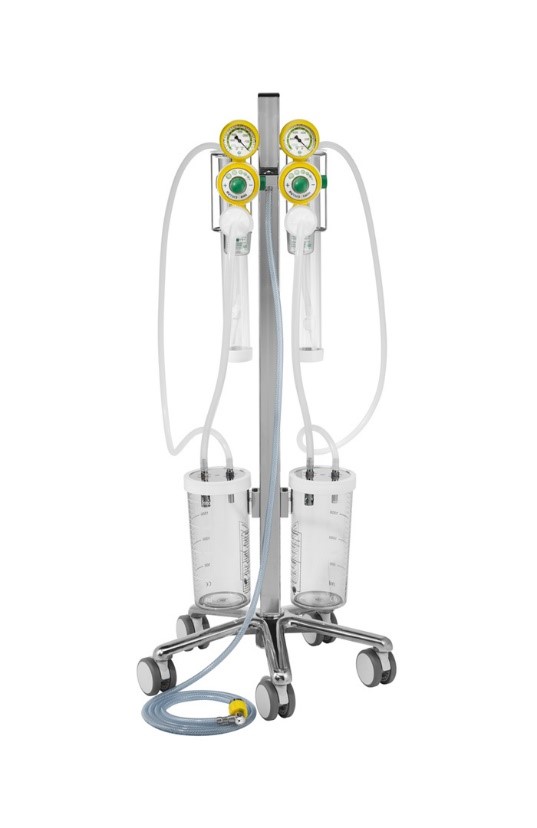

5. Central Pipeline Suction Trolley - (GES-SM 0005)

Four Canister of 2 Litre each with disposable Suction liner 2 Litre. Stainless Steel Trolley Central Pipeline Suction Trolley can be used in all hospital and nursing home which have central suction installed with them.

Responsive image
6. Suction Liner - (GES-SM 0006)

Highly flexible and transparent suction liner bag. Capacity : 1 litre, 2 litres & 3 litres Eco friendly Material : Low density polyethylene bag Centralized and ergonomic removal handles. Easy suction liner removal with one hand.

Responsive image

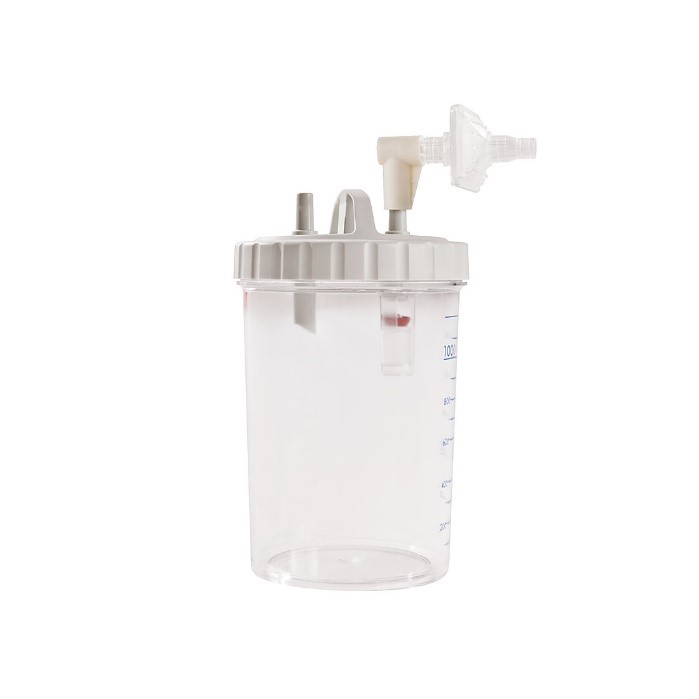

7. Canister - (GES-SM 0007)

Availabe in 1 litre, 2 litres & 3 litres Self-sealing lid provides leak-free seal Material : Low density polyethylene bag Lids contain multiple ports for versatility Frosted panel provides writing area when needed Disposable, single-use Pour spout, vacuum and patient ports With hydrophobic shutoff filter

Responsive image

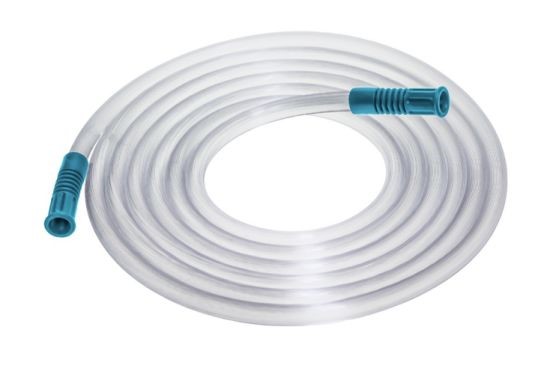

8. Suction tube for Suction liner - (GES-SM 0008)

Superior quality Durable Eco friendly

Responsive image

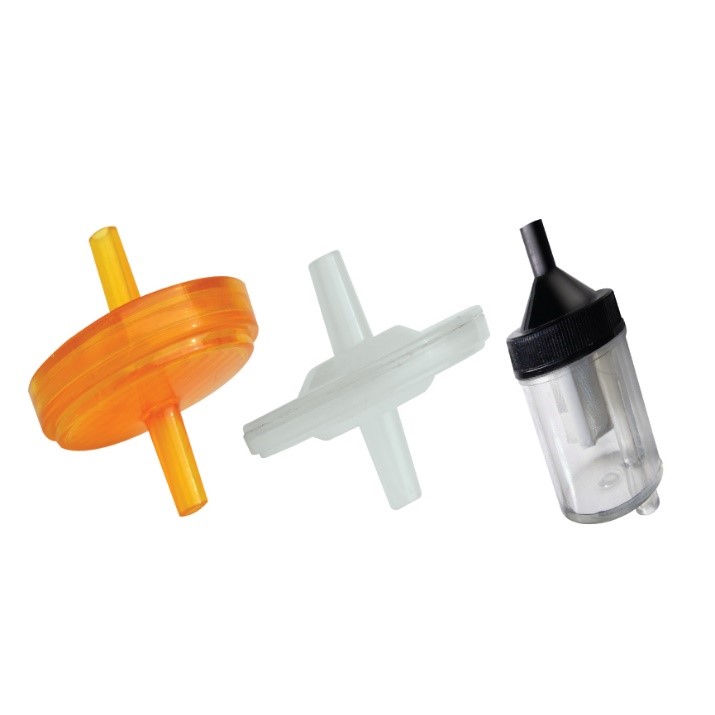

9. Trap Filter - (GES-SM 0009)

Eliminates Airborne contamination Rusable Polycarbonate and autoclavable For single use, sterilized

Responsive image

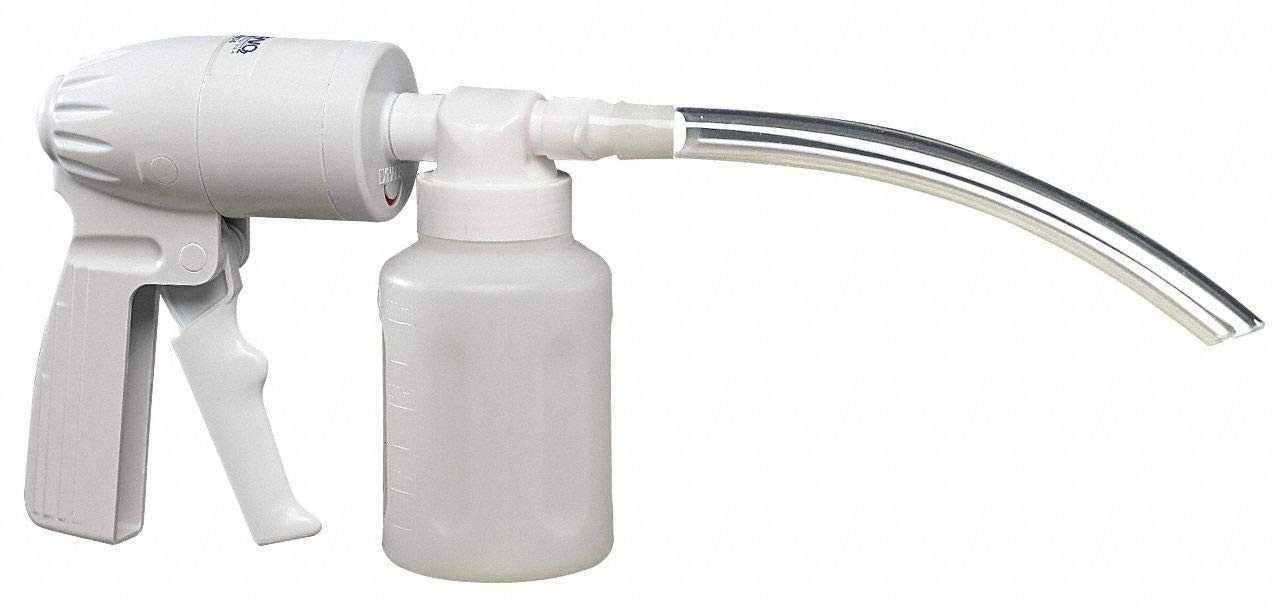

10. Hand Held Suction Units - (GES-SM 0010)

Plastic Moulded Housing Capacity: -450mm Hg± 10 Jars: 1 x 200 ml Jar
